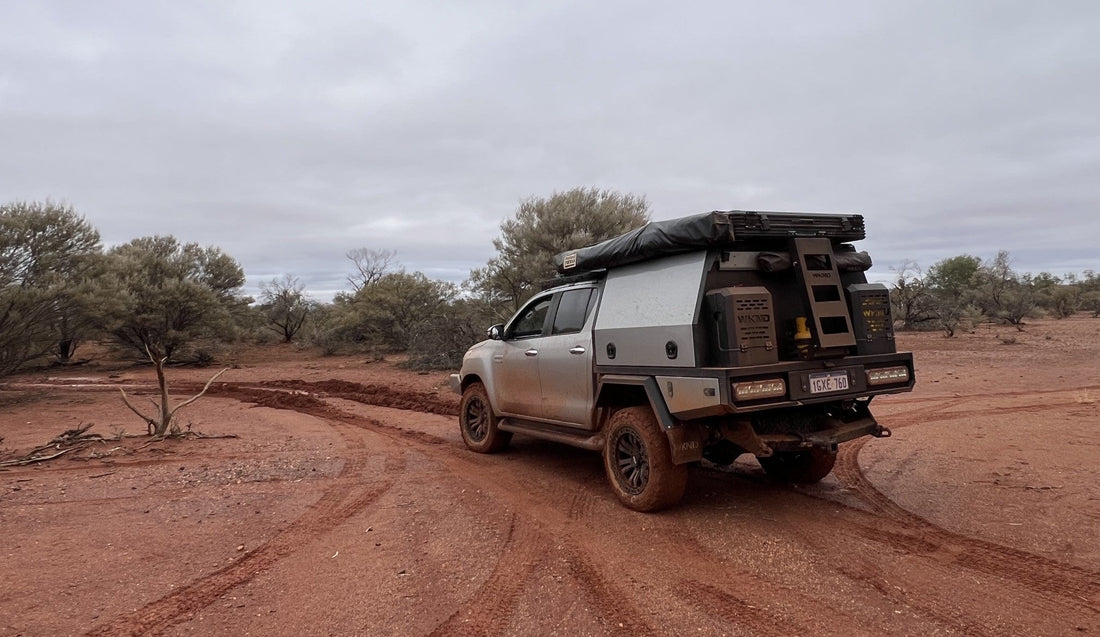

The WKND chassis mount canopy on this Hilux SR5 handled the inside of the build — dust sealed out, water sealed out, gear stayed clean and dry across 1,850 kilometres. That is covered in a separate post. But the canopy is also what the external carrying is built around. The Canning Stock Route does not have fuel stops. What goes on the outside of the canopy, how it is mounted, and how the weight sits across the build are decisions that matter before the vehicle leaves the bitumen.
Fuel and Water Mounts on the Canopy
On a chassis mount build, the sides of the WKND canopy are where the jerry can mounts live. Fuel and water in dedicated positions on the canopy exterior, properly secured, accessible without moving other gear to get to them.
The mounting matters as much as the capacity. A jerry can sitting in a loose holder on 1,850 kilometres of corrugations is a problem waiting to happen. The vibration that builds up over hours of rough track works on anything that is not locked down properly. We fit the jerry can mounts on this SR5 canopy build to hold under that kind of sustained punishment, not just on a smooth run to the campsite.
That last point about access is worth repeating. Stopping to refuel on a long remote stretch is not the moment to be fighting with a mount or working around other gear. It needs to be straightforward every time.
Recovery Gear Has to Be Accessible
Every serious remote build carries recovery gear. Traction boards, snatch strap, shackles, hi-lift jack at minimum. The question is not whether to bring it — it is where it lives on the canopy and how quickly it can be reached when it matters.
Gear buried under other gear is nearly useless in a recovery situation. I've seen builds where the traction boards were the last thing packed and the first thing needed, which is exactly backwards. When you need them on the CSR, you need them without unloading the canopy first.
On the WKND chassis mount canopy for this SR5, recovery gear had a designated position that kept it accessible without disturbing the rest of the load. That requires planning the layout before anything gets mounted, not working out where things fit after the fact.
Weight Distribution Across a Chassis Mount Build
How a chassis mount canopy is loaded changes how the vehicle handles, and over 1,850 kilometres of corrugated remote track that difference is real. Weight sitting too far back affects the front end on rough ground and puts more stress on the chassis mount itself over extended driving.
When we talked through this CSR build, weight distribution was part of the conversation before anything was bolted on. Where the fuel and water mounts would go, how the load would balance across the canopy, what the total build weight was going to look like. The WKND chassis mount canopy was built around the load this customer needed to carry, not the other way around.
GVM is worth understanding before a build like this. A full WKND chassis mount canopy fitout, fuel, water and recovery gear adds up. Knowing the number going in avoids finding out the vehicle is over its rated limit somewhere on the track.
How the Build Performed on the CSR
The Hilux SR5 completed the Canning Stock Route. The WKND chassis mount canopy came through without issues. Nothing shifted, nothing came loose, nothing needed attention mid-trip. The jerry can mounts held across the corrugations. The recovery gear was where it was supposed to be every time it was needed.
That is what a well-built chassis mount canopy is supposed to do. Not just survive the trip, but perform exactly as it was designed to, from start to finish, without requiring management on the road.
The Load Is Part of the Build Conversation
The builds that perform best on trips like the CSR are the ones where the load was considered at the same time as the canopy. What goes on the outside, what goes inside, how the weight sits across the whole vehicle. On this SR5, that conversation happened before the WKND chassis mount canopy was built, which is how it should be for a trip of this nature.
If the plan involves serious remote travel, the carrying conversation is worth having early. The canopy is not just what the gear lives in. On a chassis mount build, it is what everything else is built around.
